Paving roads with asphalt is a very important part of building and maintaining roads because it gives vehicles and pedestrians a smooth, strong surface. The asphalt paver, which is a high-tech machine used to spread and place hot asphalt, is one of the tools that makes this project a success. This piece will talk about how an asphalt paver works, what its parts are, and what their overall purpose is in executing a good pave.
Introduction to Asphalt Pavers
An asphalt paver –also referred to as a paving machine—is machinery used to pave roads, bridges, parking lots, and other surfaces. An asphalt paver spreads hot asphalt on the compacted subgrade to produce a uniform, continuous layer, which may be compacted by rollers.
Types of Asphalt Pavers
There are several types of pavers currently in the market:
1. Tow-Pull Behind Pavers: These are machines that must be pulled by an additional machine, such as a tractor or a truck.
2. Towable Pavers: These are transported to the working site through other means; they are towed or dragged through the working area and are normally preferred for big jobs where there is other equipment on the project site.
Key Components of an Asphalt Paver
Asphalt pavers are advanced construction equipment that have various parts.
Below are the primary components:
1. Conveyor System
Its main function is to transfer the hot asphalt mixture from the paver’s hopper to the screed where it is worked on by a spreader for even distribution. It usually consists of two large belts.
Loading Conveyor: This is located at the front part of the paver; its role is to feed the asphalt into the screed.
Unloading Conveyor: This is mounted at the back part of the machine where excess asphalt is thrown off to avoid blocking the belt in order to achieve a continuous flow of materials.
2. Screed
Screed is the most important attachment of an asphalt paver since it is the tool most used for leveling and compaction of the concrete mixture.
It consists of several parts:
Pan: General thin metal plate used to support the asphalt as it is leveled and compacted.
Edge Formers: These are rods that may be adjusted to provide the required form width and thickness of the asphalt edge.
Vibratory Mechanism: This mechanism employs a vibrating plate or an eccentric weight which compacts the asphalt as it is placed.
Float Bar: This is a hydraulic bar which is used for leveling the loose course of asphalt and improving the smoothness of the surface.
3. Hopper
The hopper is a receptacle mounted towards the rear of the paver in which the hot asphalt mix is kept before distribution. It ensures the feeder provides continuous feed to the conveyor.
4. Drive Mechanism
The drive mechanism propels the paver forward. In case of self-propelled pavers, it should have a track or wheels for movement of the equipment. Towable pavers move with the assistance of a towing vehicle; therefore, they need to be towed.
5. Control Systems
Current models of asphalt pavers have electrical and mechanical controls that enable the operators to regulate screed height, gradient, and amplitude. These can be hand operated or automatic with high levels of accuracy and flexibility.
The Paving Process
For efficient and quality asphalt paving work, there are a few steps that need to be followed.
How the paving is carried out:
1. Material Preparation
The asphalt blend has to be made first before the paving. The equipment is used to mix and heat aggregates and asphalt to the right temperature. The concrete mix is then delivered to the job site by dump trucks.
2. Laying the Subgrade
The subgrade can be defined as the initial base on which the pavement is to be constructed, and it mostly comprises the subsoil or subgrade material compacted in the construction process. It must be constructed well to hold this load of the asphalt and further be ready to take the traffic load. This means extensive trenches must be made on the width of the subgrade and then laid to a required camber and compacted.
3. Setting Up the Paver
The paver is put down at the start of the paving process once the subgrade is set. For this job, the width and slope of the screed would need to be changed, as well as the placement of the edge formers so that they line up with the ones that were planned.
4. Feeding the Asphalt
The hot asphalt mixture is discharged into the hopper from the truck. From here the flow of asphalt is directed to the screed where it is managed to the right thickness and density. The vibratory mechanism helps in distributing the asphalt uniformly and at the same time it is compacted.
5. Screeding
It then advances horizontally, distributing the screed across the width of the road. The device can vibrate and come with adjustable screed, which makes it easy to level the surface.
6. Finishing

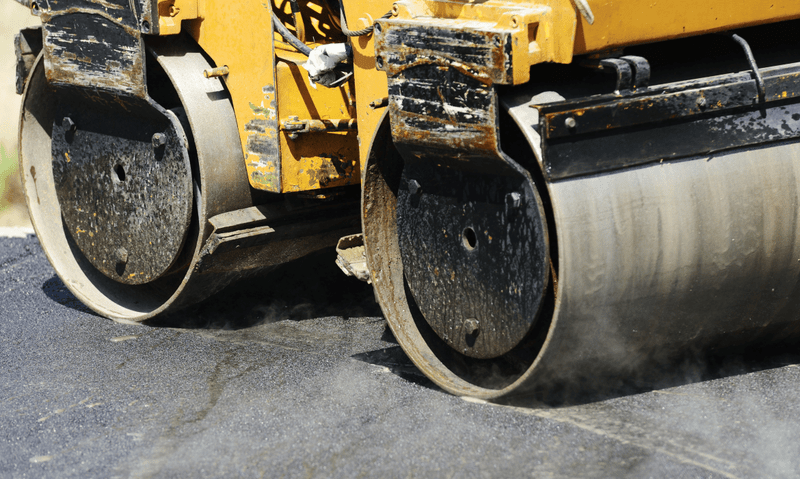

After the paver has completed laying a given segment of the road, a roller is used to further compact the asphalt. This step allows the pavement to harden, so it can easily withstand traffic pressures. The roller also serves the purpose of getting rid of any remaining surface irregularities.
7. Cooling and Curing
It is then required that the asphalt harden up, so it is given ample time to dry after it has been distributed. This process enables the asphalt to stiffen up, thus acting like a glue that holds all the aggregates together and forms a firm, strong-wearing surface. Traffic should not be allowed through the road for a period of time to allow the asphalt to cure well.
